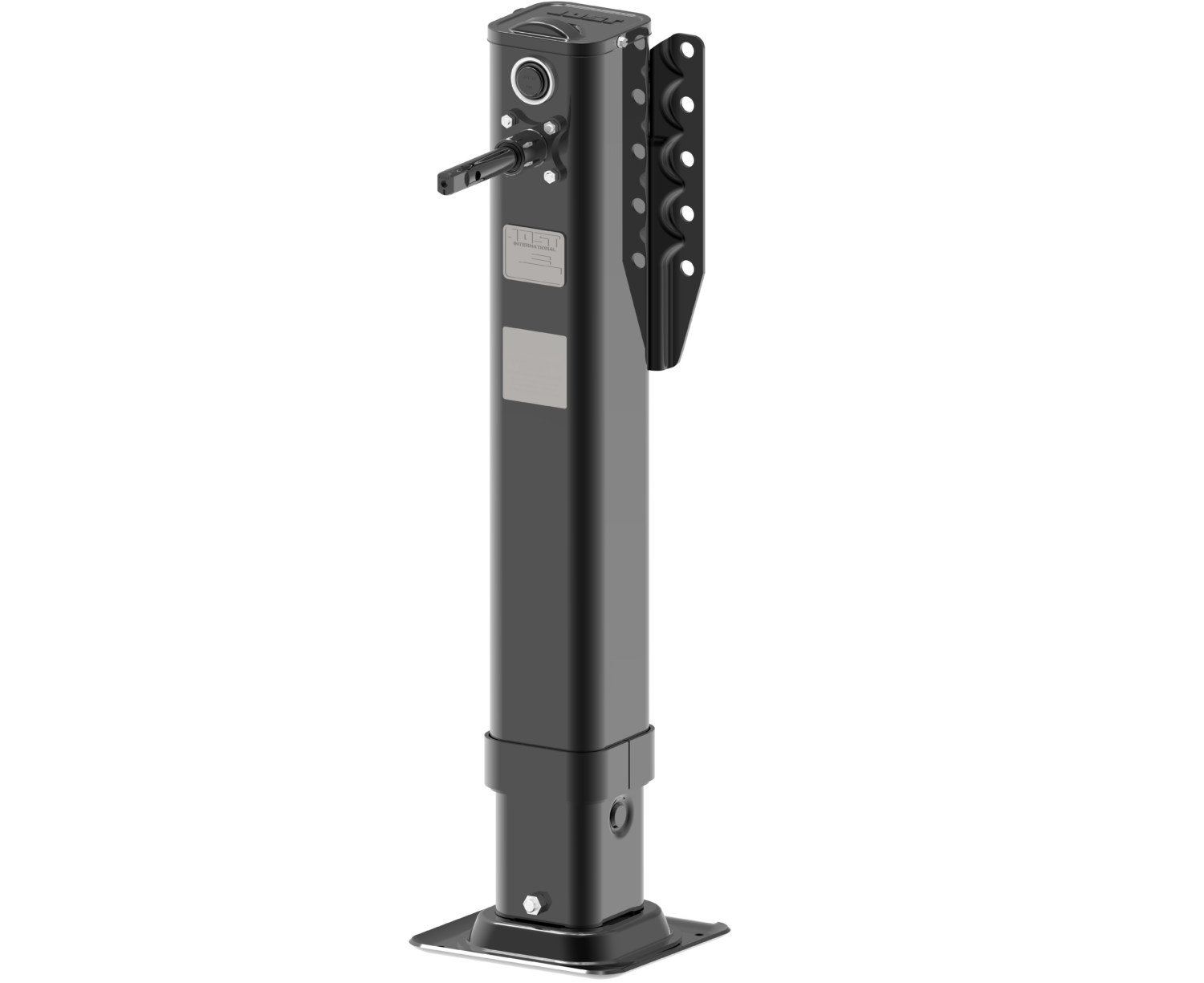

H450 Magnum Series
H450 Magnum Series Landing Gear
Our most robust landing gear product, the H450 Magnum is designed with a maximum static load rating of 200,00 lbs. The go-to landing gear product for heavy-duty commercial trucking applications, the H450 offers all of the features that come standard in other JOST landing gear products, like an internal gearbox and a fully encased elevating screw, with the additional reinforcement and durable construction necessary to support heavier loads.
- 10 Year Warranty
- Rechargeable powder-coated grease tube encasing elevating screw
- Completely sealed legs and shafts
- Internal gearbox filled with a low-temperature grease
- Double “D” style shaft allowing crank force to go directly into the gearbox
- Welded thrust collar
- Heavy-duty thrust bearing
- Heavy-duty 2″ reinforcing strap for added strength
Capacities & Ratings:
- Max Static Load Rating* 200,000 lbs
- Rated Lift Capacity** 70,000 lbs
- Sideload Capacity* 33,000 lbs / set
* When properly braced on a trailer
** With 100ft-lbs input torque
- High Gear: 3.5 turns/inch
- Low Gear: 32 turns/inch
MAINTENANCE, OPERATION, REPAIR
H450 Series Informational Flyer
Key Features & Benefits
A450 Magnum Series
An internal gearbox filled with low-temperature grease minimizes damage and keeps this heavy-duty product functioning properly for years to come.
A heavy-duty 2″ reinforcing strap at the bottom of the upper housing provides the added strength necessary to support heavier loads.
Additional heavy-duty components like a welded thrust collar and heavy-duty thrust bearing provide extra reinforcement.
